RAMIA Diamond 1800 Workbench
RAMIA Diamond 1800 Workbench
Overall size: 71 × 30 × 33 in
In stock
Couldn't load pickup availability
Questions before ordering? Call +1 470-601-3944 or email info@workbenchstore.com.
Can I change the vise position?
Can it clamp wide panels vertically?
Does it include rear tool storage?

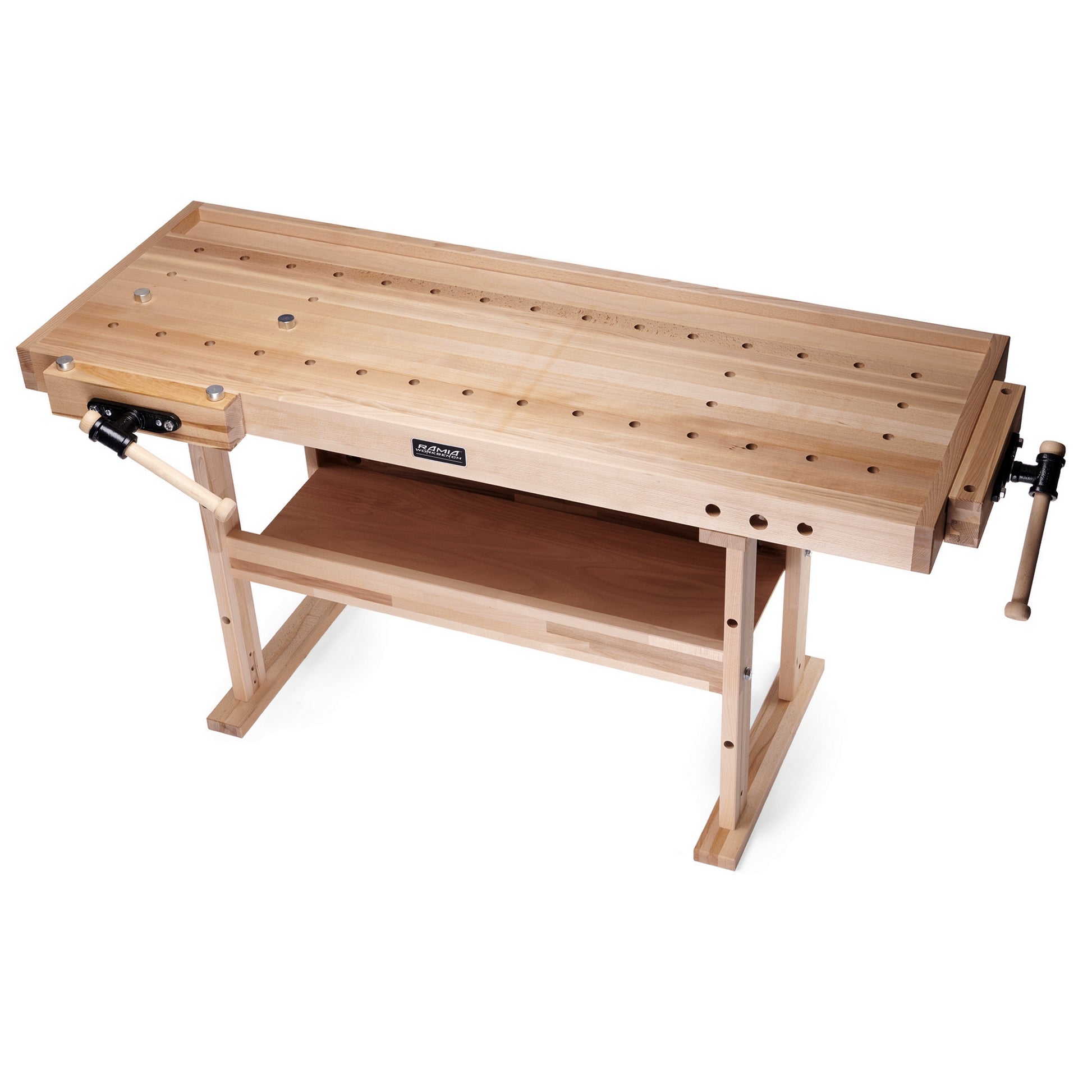

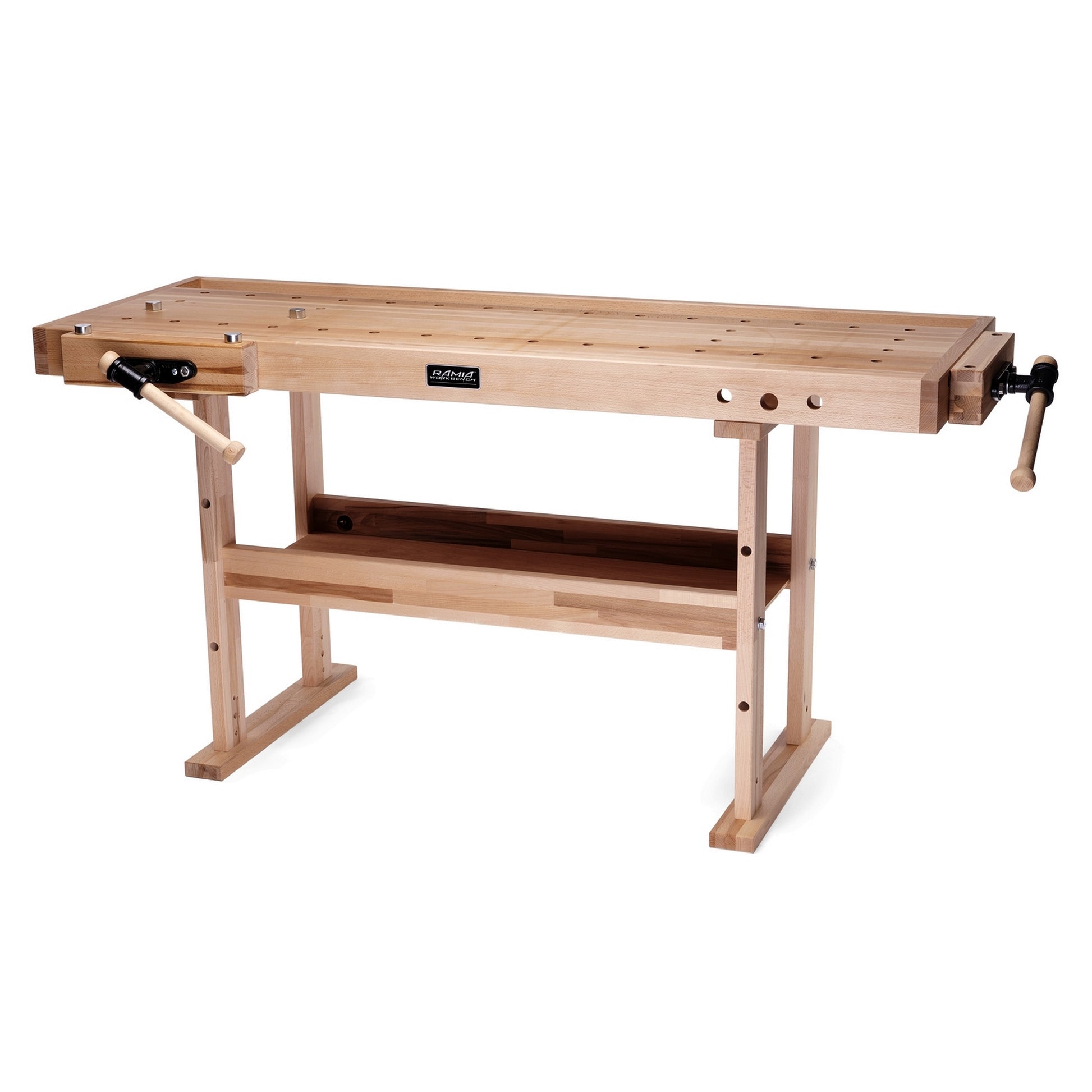

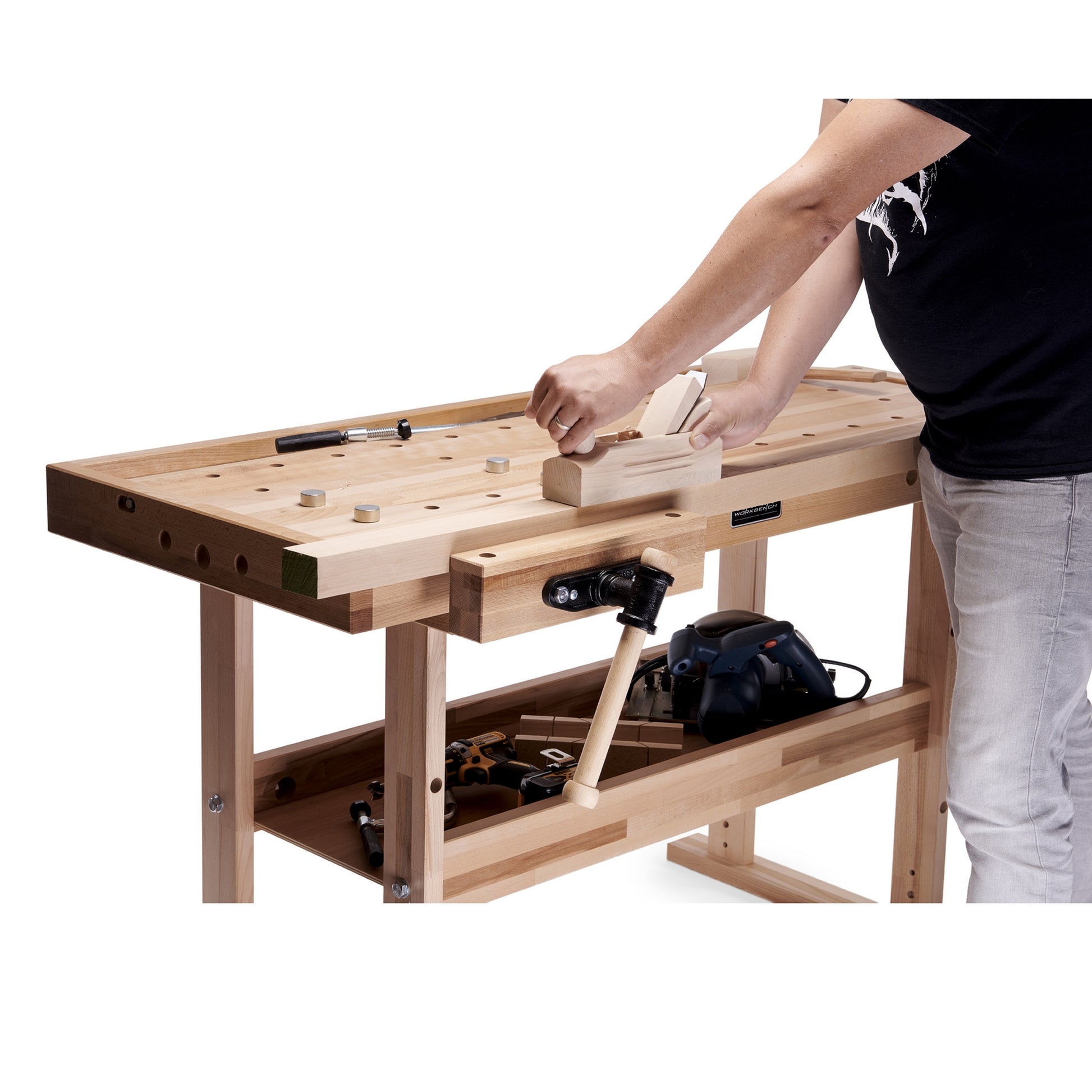

Do you need workbench with plenty of options for material clamping? Do you need vises where they suit your work style best? The RAMIA Diamond 1800 woodworking bench is your ideal choise.
Features and Benefits:
• Open shelf and Tool well at rear side of workbench
• Ready for easy change of vices for left-hander / right-hander

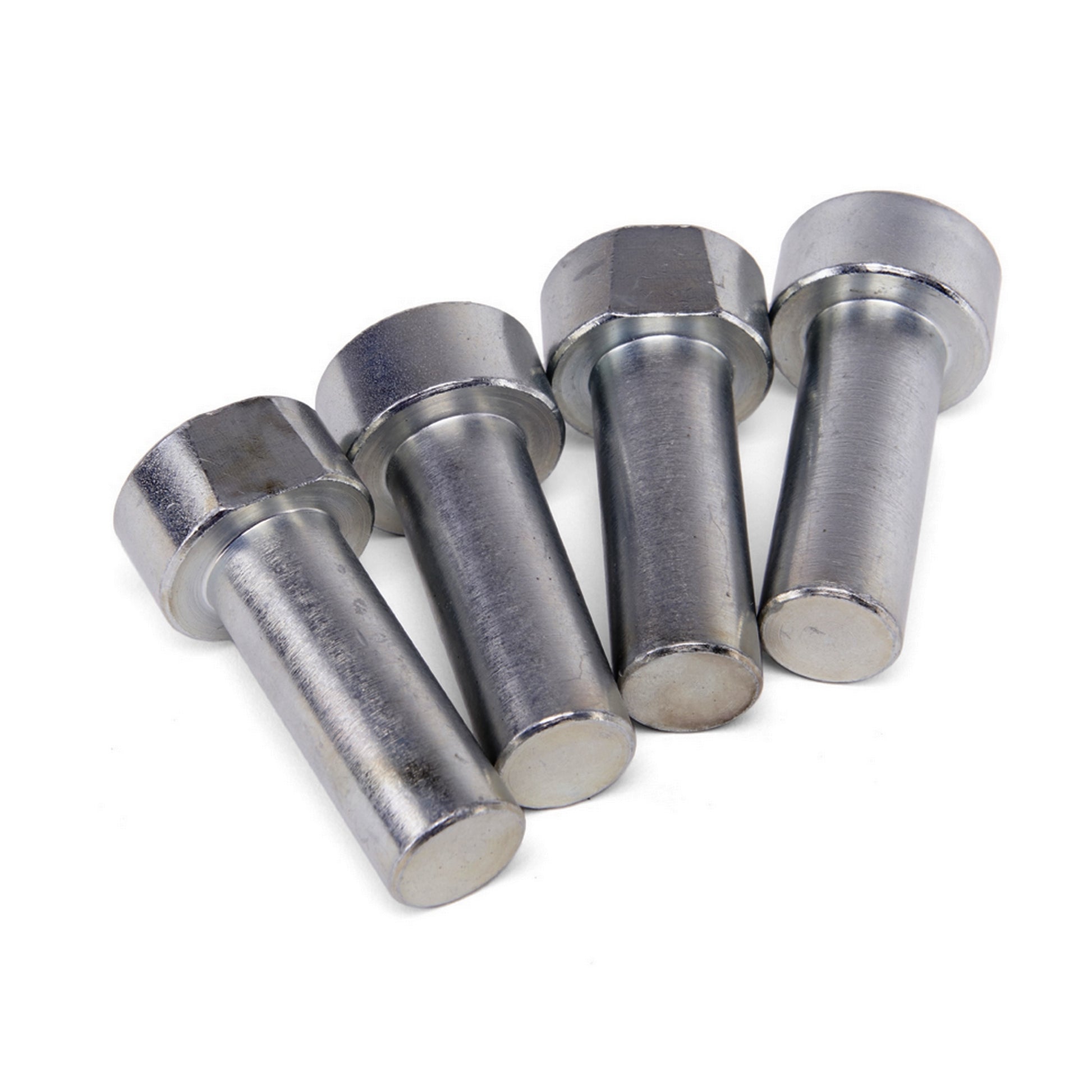

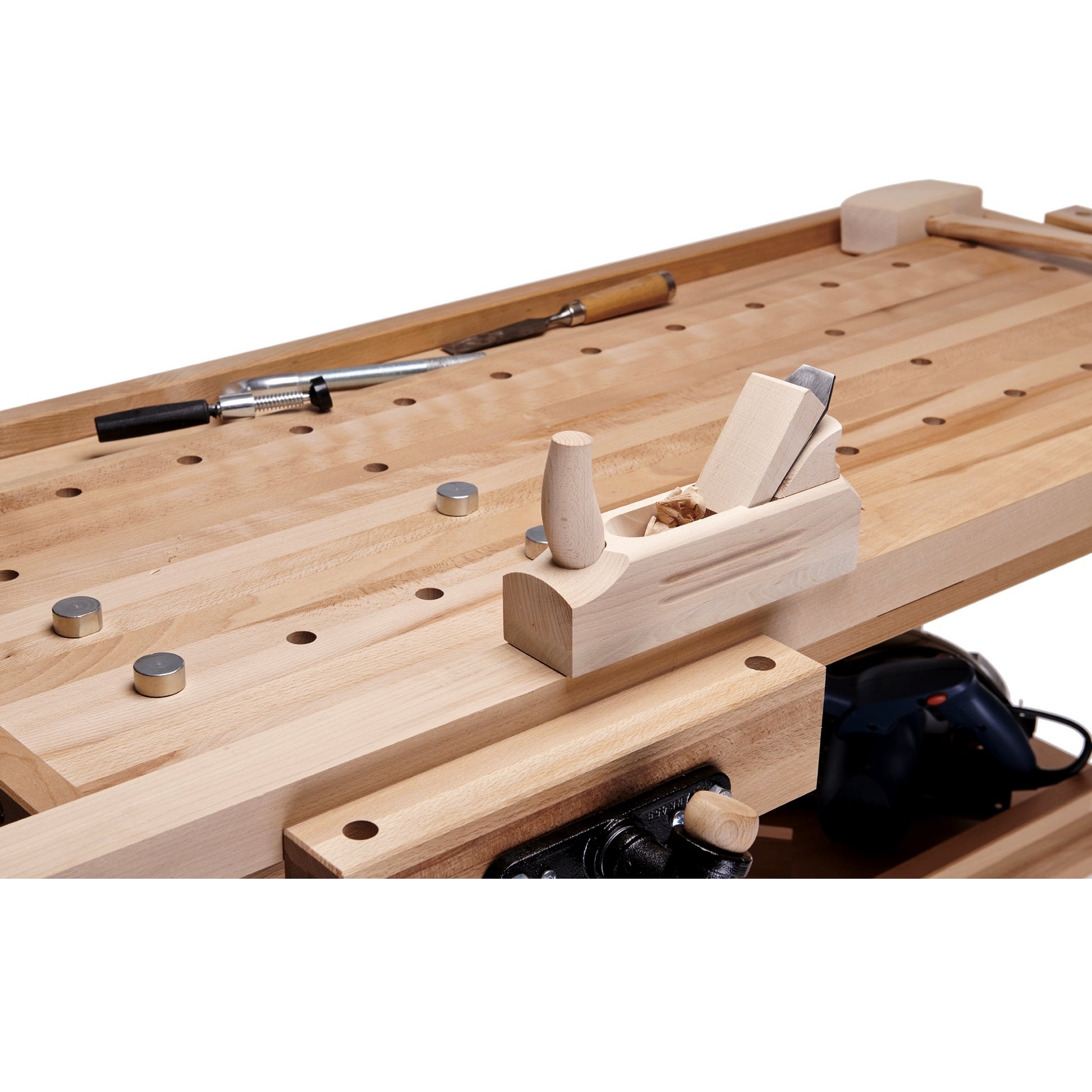

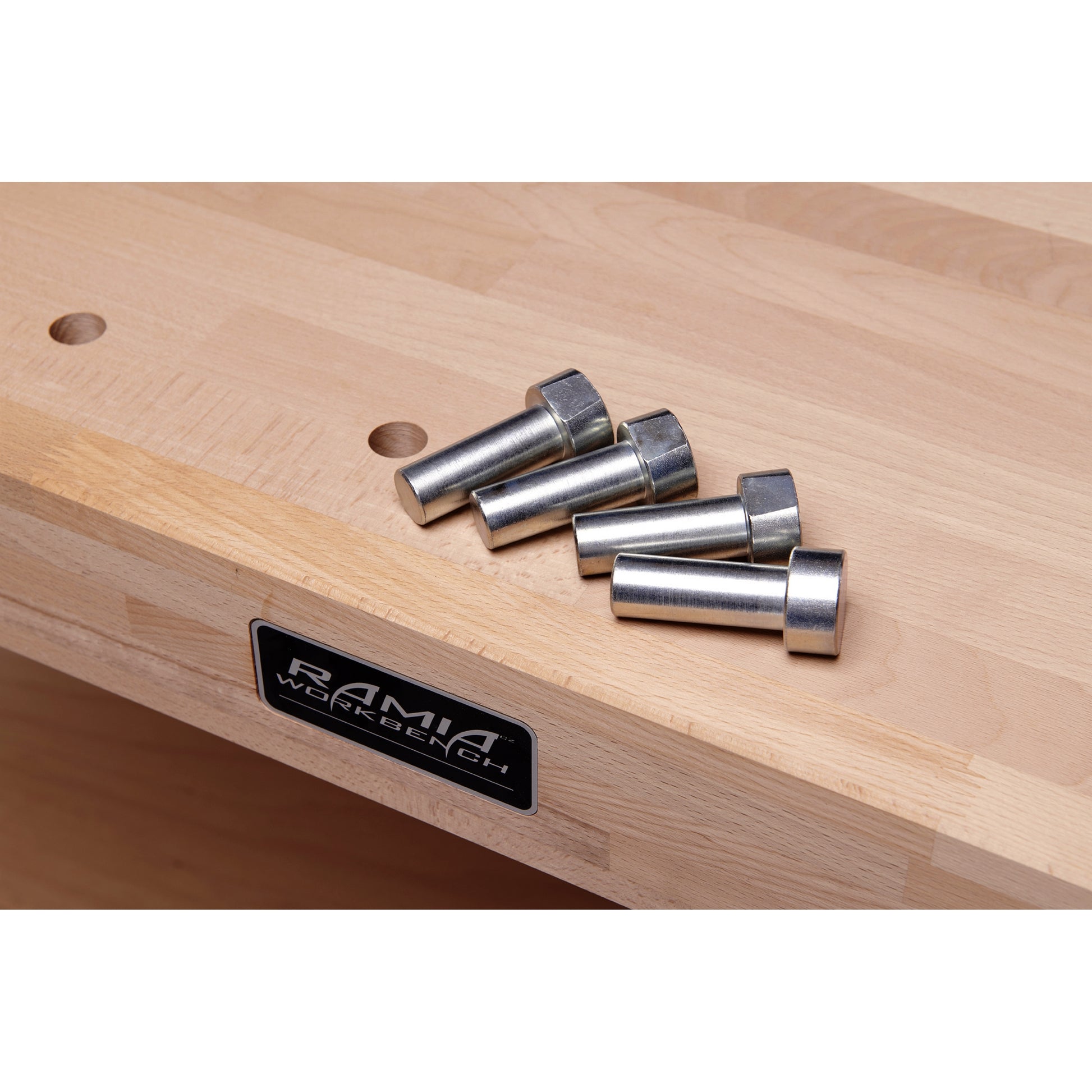

• Plenty of dog holes for clamping of material in various sizes
• Bench dog holes in the legs support wide panels clamped vertically
• Benchtop is predrilled for four custom vise locations—on the left and right corners as well as both ends
• Made of PEFC certificate European beech wood of highest quality

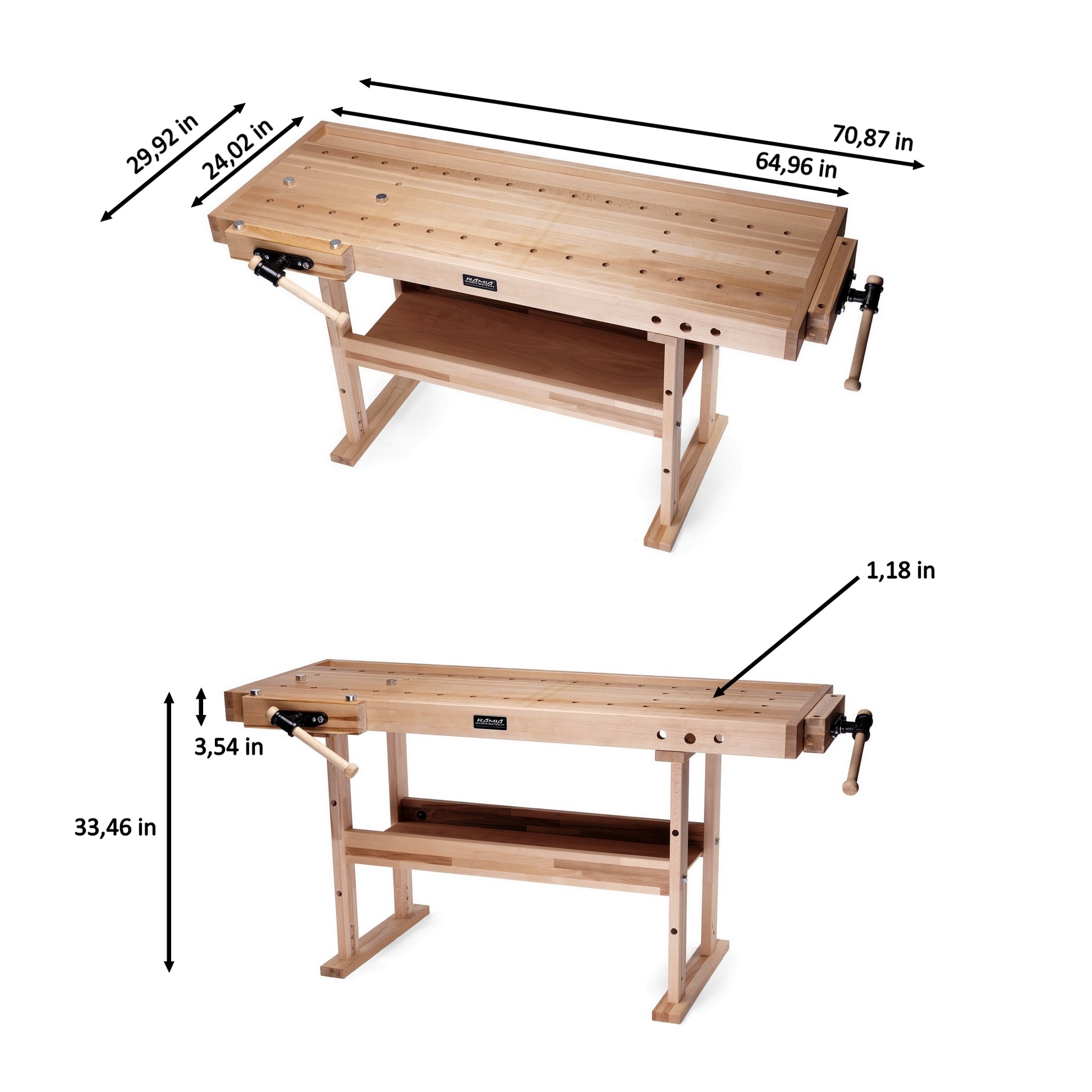

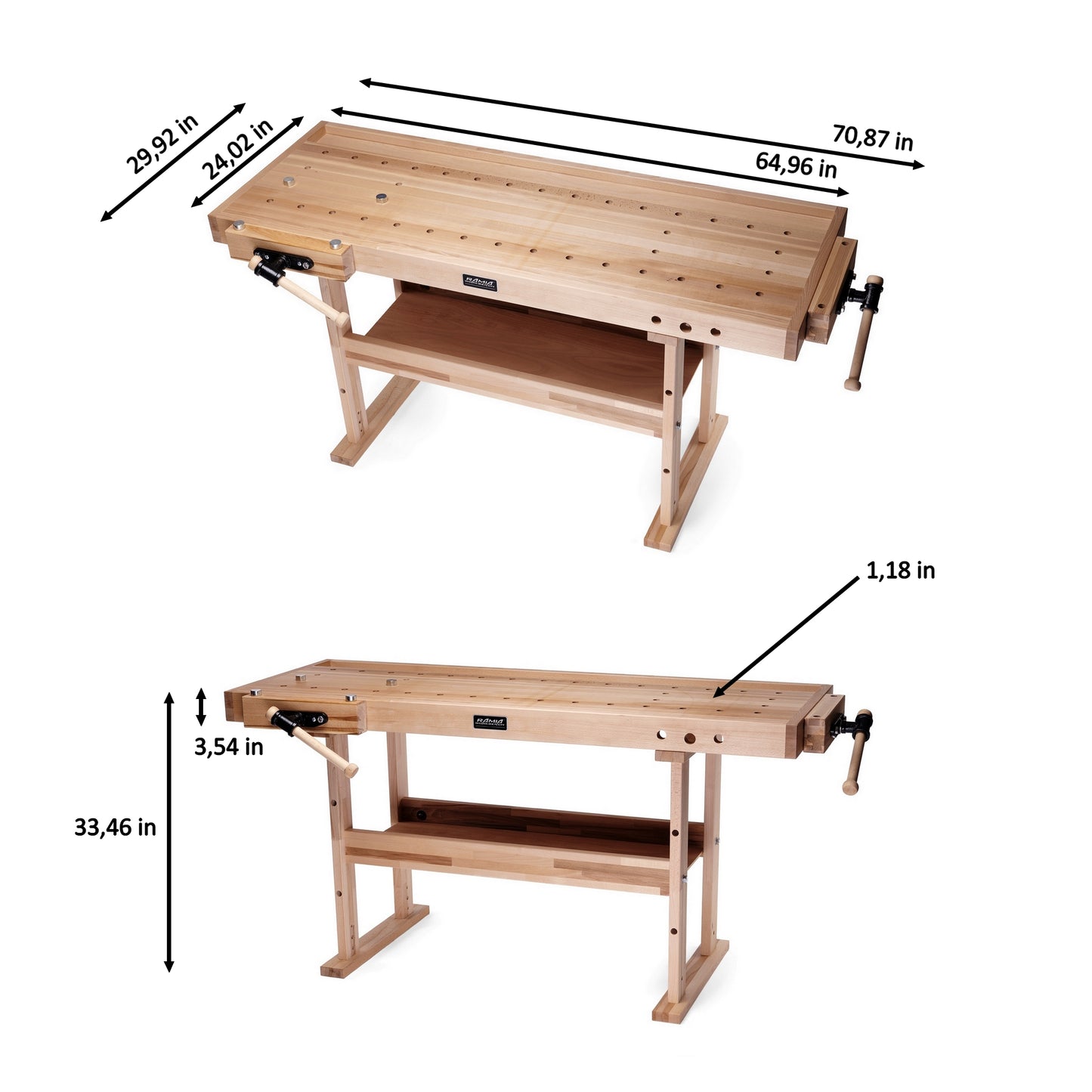

Dimensions (inches/mm):
| Total length | 70 ⁵⁵/₆₄ = 1800mm |
| Worktop length | 64 ⁶¹/₆₄ = 1650mm |
| Total width | 29 ⁵⁹/₆₄ = 760mm |
| Worktop width | 24 ¹/₆₄ = 610mm |
| Working height | 33 ¹⁵/₃₂ = 850mm |
| Worktop thickness | 1 ³/₁₆ = 30mm |
| Apron depth | 3 ³⁵/₆₄ = 90mm |

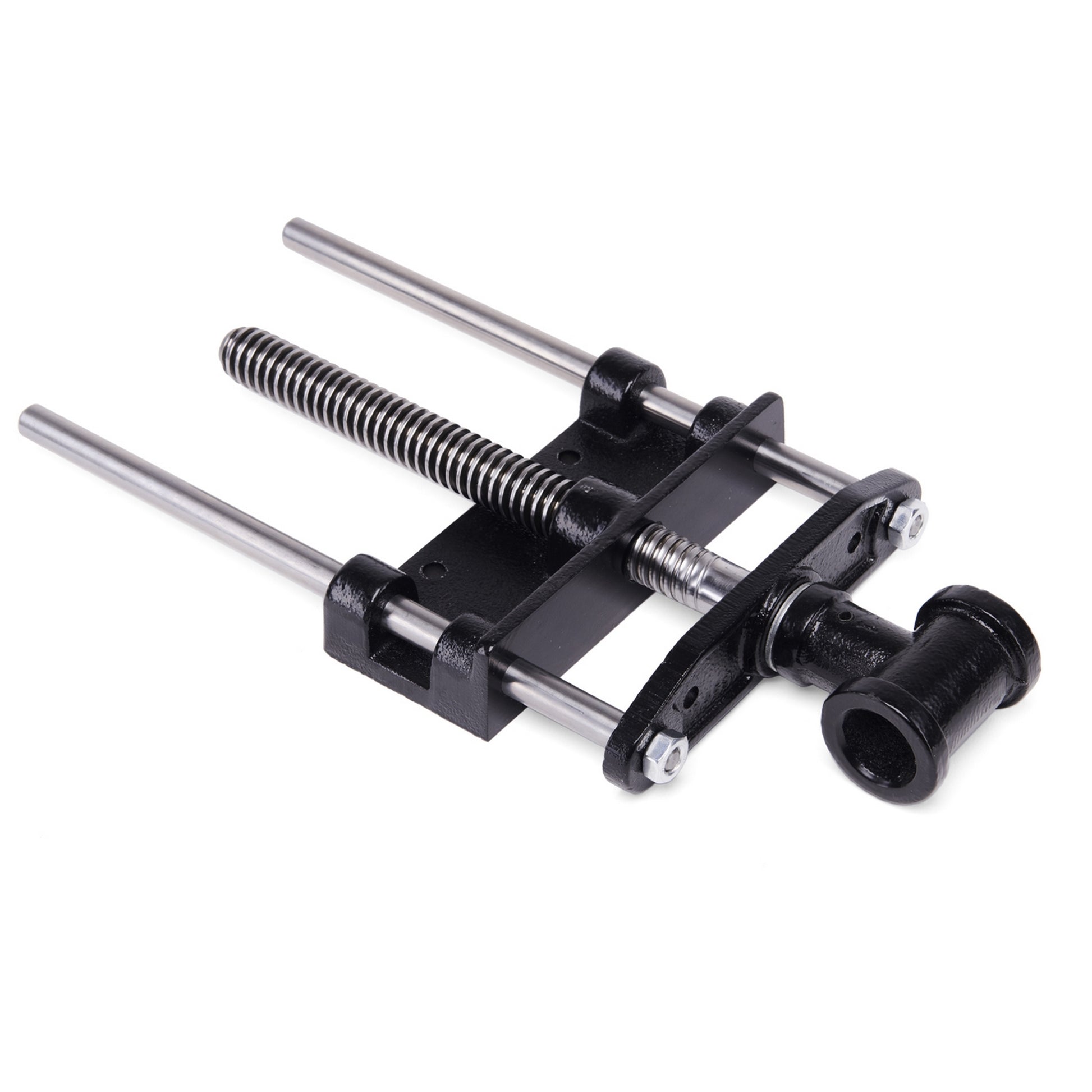

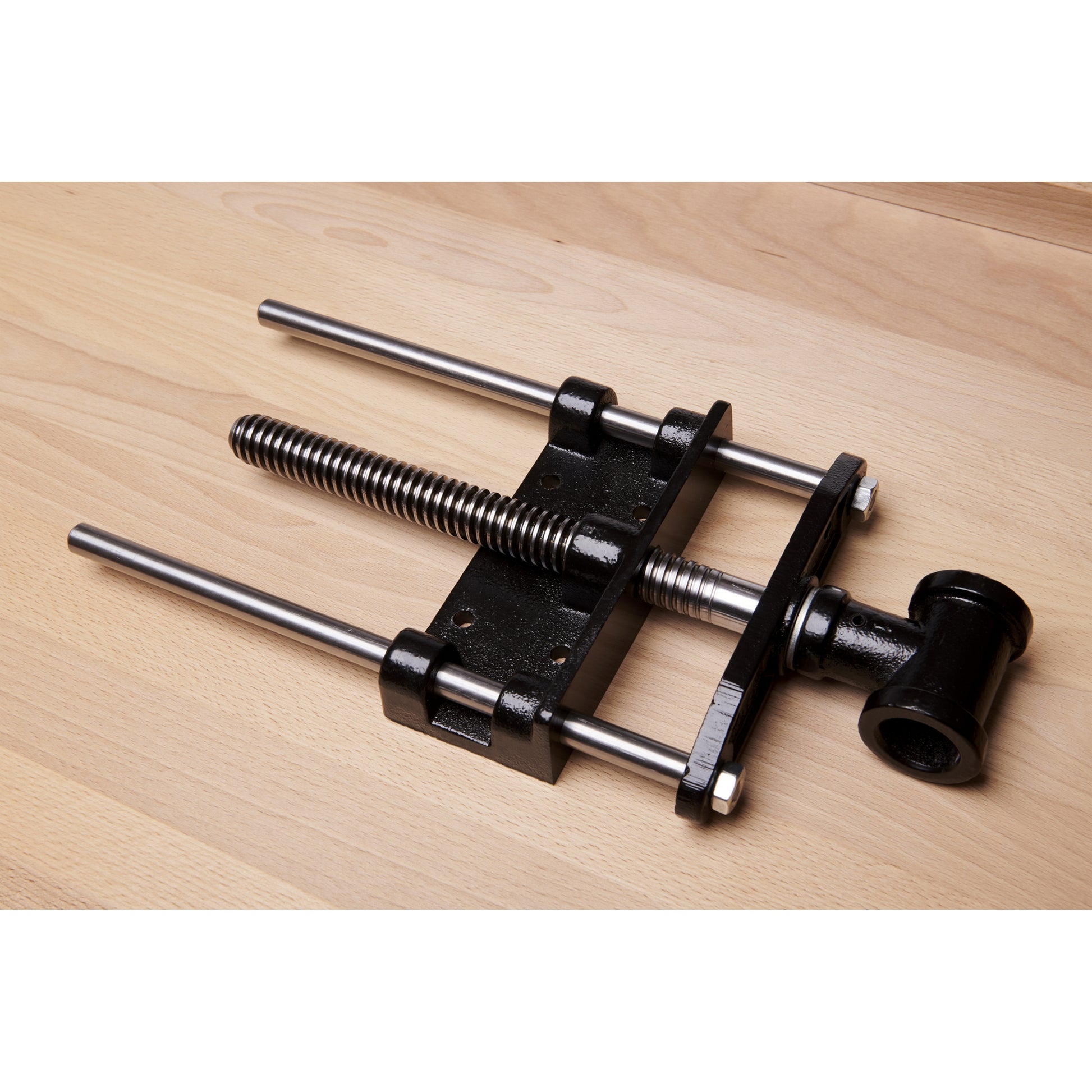

| Front/Side vise capacity | 5 ¹/₈ = 130mm |
| Weight | 117 lbs = 53kg |
Assembly video:
Delivery & Assembly
Diamond workbenches are delivered disassembled and require more assembly than our PRO models. The customer assembles the base and installs the vises. Basic hand tools are required; the instructions may also recommend using your own trusted wood glue. Assembly typically takes about 30–90 minutes. Printed assembly instructions are always included, and a QR code provides access to an assembly video for additional guidance.
This workbench is delivered in 2 packages.
Specifications
- Workbench type
- Professional Workbench
- Overall dimensions
- 70.87× 29.92× 33.46 in (1800× 760× 850 mm)
- Work surface dimensions
- 64.96× 24.02 in (1650× 610 mm)
- Working height
- 33.46 in (850 mm)
- Worktop thickness
- 1.18 in (30 mm)
- Apron depth
- 3.54 in (90 mm)
- Front vise jaw size
- 14.17× 2.17 in (360× 55 mm)
- Front vise capacity
- 5.12 in (130 mm)
- Tail vise jaw size
- 14.17× 2.17 in (360× 55 mm)
- Tail vise capacity
- 5.12 in (130 mm)
- Bench dog hole diameter
- 0.75 in (19 mm)
- Weight
- 116.8 lb (53.0 kg)
